A780BT 发布时间: 2023-05-10 15:05       浏览量: 120

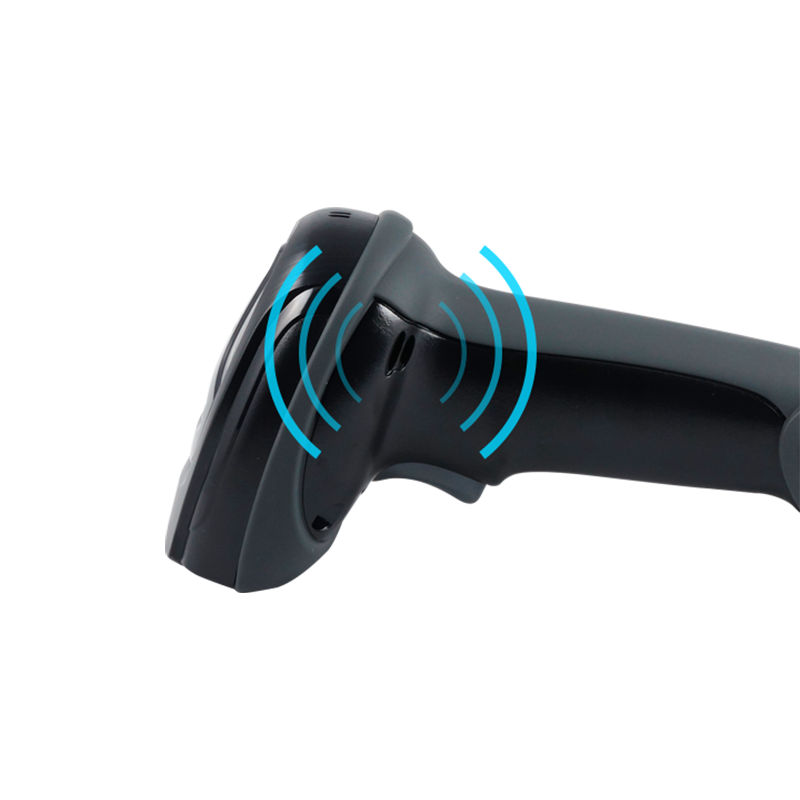

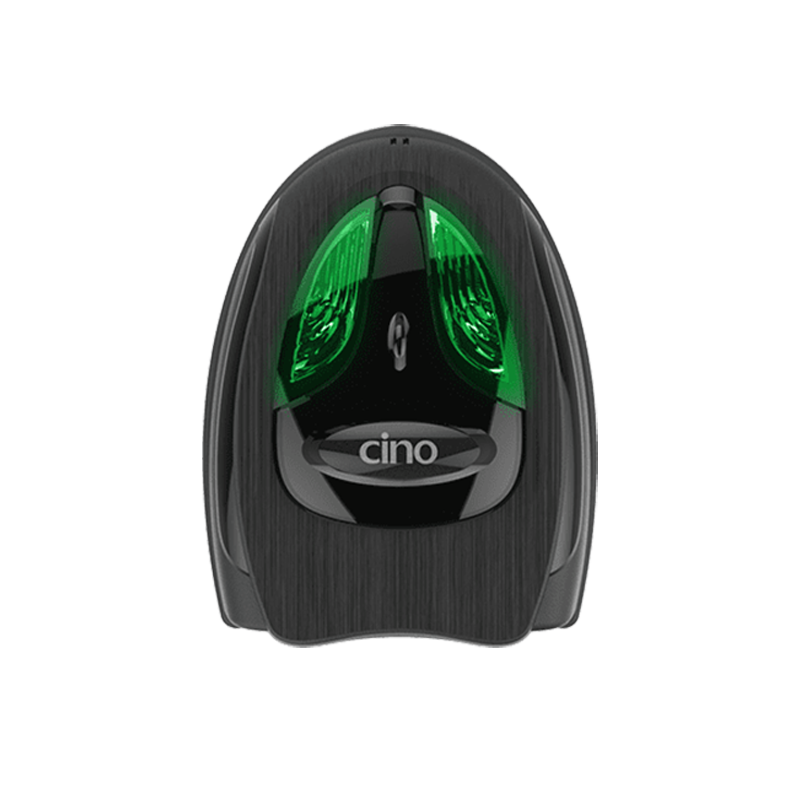

A780BT

2D 蓝牙成像器

产品详情
性能參數
Image Sensor 1280 x 800 Pixels
Print Contrast 18% minimum reflective difference
Light Source 660nm LED
Imager Field of View 41.5˚H x 25.9˚V
Minimum Resolution HD Model
2.4 mil Code 39, 4.5 mil DM
SR Model
2.7 mil Code 39, 4.8 mil DM
ER Model
3.5 mil Code 39, 7 mil DM
Reading Range *1 HD Model
13 mil (0.33mm) UPC/EAN up to 14.1” SR Model
13 mil (0.33mm) UPC/EAN up to 19.6” ER Model
13 mil (0.33mm) UPC/EAN up to 26″
Roll, Pitch, Skew Roll: 360˚; Pitch: ± 75˚; Skew: ± 65˚
Motion Tolerance Up to 617 cm/s (243 in/s)
Configuration Setup FuzzyScan Barcode commands
FuzzyScan iCode
FuzzyScan PowerTool
Data Processing DataWizard Premium
Image Capture BMP
电器特性
Battery 3.7V, 2600mAH Li-ion rechargeable battery
Battery Charge Time Approx. 4-5 hours per full charge
Scans per full Charge More than 67,600 scans and transmissions
Operating Voltage 5 ± 10% VDC
Operating Current Charging: Max.750 mA
Standby: Max.175 mA
(Scanner with Smart Cradle)
无线通信特性
RF Standard Bluetooth v4.0
RF Frequency Band 2.402~2.4830 GHz unlicensed ISM band
Radio Link Modes PAIR, PICO, SPP, HID
Communication Range More than 100 meters in open space when working with Smart Cradle, line of sight
Supported Profiles SPP, HID
物理特性
Dimensions 93.5 mm (L) x 71 mm (W) x 160 mm (D)
3.68 in. (L) x 2.79 in. (W) x 6.29 in. (D)
Weight 208g (Battery included)
Color Black
可读取的条码类型
1D Linear Codes Code 39, Code 39 Full ASCII, Code 32, Code 128,
GS1-128, Codabar, Code 11, Code 93, GS1 DataBar,
Standard & Industrial 2 of 5, Interleaved & Matrix 2 of 5,
IATA, UPC/EAN/JAN, UPC/EAN/JAN with Addendum,
Telepen, MSI/Plessey & UK/Plessey
2D Codes PDF417, Micro PDF417, Codablock F, Code 16K,
Code 49, Composite Codes, DataMatrix, MaxiCode,
QR Code, Aztec, MicroQR
Postal Barcodes Australian Post, US Planet, US Postnet, Japan Post
Posi LAPA 4 State Code
环境参数
Drop Specifications Withstands multiple drops from 2.0m (6.6ft) to concrete
Environmental Sealing IP52
Operating Temperature -10˚C to 50˚C (14˚F to 122˚F)
Storage Temperature -40˚C to 70˚C (-40˚F to 158˚F)
Humidity 5% to 95% relative humidity, non-condensing
Ambient Light Immunity 0 ~ 106,000 lux
ESD Protection Functional after 15KV discharge
安规认证
EMC & Radio CE, FCC, BSMI, RCM, KC, NCC, VCCI, MIC, SRRC
Safety *2 LED Eye Safety IEC62471, Exempt Group
Environmental Compliant with RoHS directive
相关配件
Smart Cradle
RF Standard
Battery charging
User Interfaces
Host Interfaces
Bluetooth v4.0
Fast charge
1 blue link indicator,
2-color status indicator
Beeper, Paging / Reset button
USB HID (USB Keyboard)
USB VCOM (USB COM port emulation)
Standard RS232
Charging Cradle
Battery Charging:
User Interface:
Fast charge
1 blue power indicator
Interface Cables RS232 Serial Cable
USB Cable
Others 5VDC Power Supply Unit
USB Power Cable
BT2100 Battery Pack (2600mAh)
US100 SmartStand
US50 Hands-Free Stand
